Oracle数据库诊断文件(日志)查看
Oracle数据库诊断文件(日志)查看
Diagnostic File（诊断文件）
1：诊断文件的作用
Diagnostic files ：
包含了后台遇见重大事件的信息。
被用于解析问题，
被用于日常管理日志文件。
2：诊断文件日志的分类
分为两类：
1： alterSID.log
-----background trace files （后台进程跟踪文件）
2： trace files ---
-----user trace file （用户trace 文件）
1：对于Background trace files文件的命名：
命名方式： SID_processname_PID.trc 对应解释 SID_进程名_进程号.trc
2: 对于user trace files 的文件命名为:
SID_ora_PID.trc 解释： SID_ora_进程号.trc
3：对于 alertSID.log 说明：
这个文件是为了记录： 1：记录一些操作命令
2：记录主要事件的结果
3：以及日常的操作信息
4：被用于诊断数据库错误
每一个entry 都有一个time stamp（时间戳）和它关联
该文件必须被ORACLE DBA管理
这个文件的位置在： BACKGROUND_DUMP_DEST
通过 show parameter dump 查看这个文件的位置：
这个文件中也包含数据库的启动信息相当于pfile或者spfile的内容。
用管理员登录：
2：下面是实战操作：
首先用sysdba登录后执行：
[sql]
SQL> show parameter dump
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
background_core_dump string partial
background_dump_dest string d:\app\topwqp\diag\rdbms\orcl\
orcl\trace
core_dump_dest string d:\app\topwqp\diag\rdbms\orcl\
orcl\cdump
max_dump_file_size string unlimited
shadow_core_dump string none
user_dump_dest string d:\app\topwqp\diag\rdbms\orcl\
orcl\trace
可以看到这些文件的路径信息。

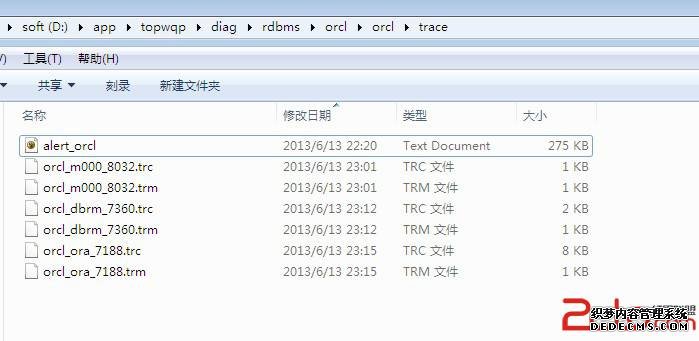

根据显式的信息我找到我的文件位置：
目录结构如下：
下面说一下如何才能记录信息到这些日志文件，需要一些开关，如果不开，记录的只是
一点点信息而已：
两种方式 能够让用户tracing
1：session 级别的：
使用如下命令：
ALTER SESSSION SET SQL_TRACE = TRUE
第二种是执行如下存储过程：
dbms_system.SET_SQL_TRACE_IN_SESSION
第二个方式是 instance级别的：
设置初始化参数： SQL_TRACE = TRUE
一般采用session级别的。因为设置instance级别的容易造成log文件过大；
可以通过alterSID.log文件中的信息制作pfile 或者spfile文件启动
数据库。
下面采用session级别的修改sql_trace为true即可在user_dump_dest中对应文件中看到相应的信息。
[sql]
SQL> conn /as sysdba
已连接。
SQL> alter session set sql_trace = true;
会话已更改。
执行过后：查看
orcl_ora_7188.trc文件信息 PS：如果不知道哪个文件就把这个目录下的全部删除，再执行sql就会看到生成的文件：
查看这个文件信息如下：
很详细的执行信息：
比如一个语句为：select * from dual
这个文件中会生成如下信息：
[plain]
*** 2013-06-13 22:58:20.776
=====================
PARSING IN CURSOR #1 len=18 dep=0 uid=0 oct=3 lid=0 tim=9184375464 hv=942515969 ad='232363f8' sqlid='a5ks9fhw2v9s1'
select * from dual
END OF STMT
PARSE #1:c=0,e=32,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,tim=9184375458
EXEC #1:c=0,e=50,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,tim=9184376205
FETCH #1:c=0,e=109,p=0,cr=3,cu=0,mis=0,r=1,dep=0,og=1,tim=9184376423
STAT #1 id=1 cnt=1 pid=0 pos=1 obj=115 op='TABLE ACCESS FULL DUAL (cr=3 pr=0 pw=0 time=0 us cost=2 size=2 card=1)'
FETCH #1:c=0,e=2,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,tim=9184376893
是对这个sql的执行的详细解读分析
下面贴上今天的部分执行的信息：
[plain]
*** 2013-06-13 22:58:20.776
=====================
PARSING IN CURSOR #1 len=18 dep=0 uid=0 oct=3 lid=0 tim=9184375464 hv=942515969 ad='232363f8' sqlid='a5ks9fhw2v9s1'
select * from dual
END OF STMT
PARSE #1:c=0,e=32,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,tim=9184375458
EXEC #1:c=0,e=50,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,tim=9184376205
FETCH #1:c=0,e=109,p=0,cr=3,cu=0,mis=0,r=1,dep=0,og=1,tim=9184376423
STAT #1 id=1 cnt=1 pid=0 pos=1 obj=115 op='TABLE ACCESS FULL DUAL (cr=3 pr=0 pw=0 time=0 us cost=2 size=2 card=1)'
FETCH #1:c=0,e=2,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,tim=9184376893
*** 2013-06-13 23:15:15.474
=====================
PARSING IN CURSOR #1 len=289 dep=0 uid=0 oct=3 lid=0 tim=10199053291 hv=2462394820 ad='232017e0' sqlid='7cfz5wy9caaf4'
SELECT NAME NAME_COL_PLUS_SHOW_PARAM,DECODE(TYPE,1,'boolean',2,'string',3,'integer',4,'file',5,'number', 6,'big integer', 'unknown') TYPE,DISPLAY_VALUE VALUE_COL_PLUS_SHOW_PARAM FROM V$PARAMETER WHERE UPPER(NAME) LIKE UPPER(:NMBIND_SHOW_OBJ) ORDER BY NAME_COL_PLUS_SHOW_PARAM,ROWNUM
END OF STMT
PARSE #1:c=0,e=438,p=0,cr=0,cu=0,mis=1,r=0,dep=0,og=1,tim=10199053285
=====================
PARSING IN CURSOR #2 len=210 dep=1 uid=0 oct=3 lid=0 tim=10199056088 hv=864012087 ad='29162590' sqlid='96g93hntrzjtr'
select /*+ rule */ bucket_cnt, row_cnt, cache_cnt, null_cnt, timestamp#, sample_size, minimum, maximum, distcnt, lowval, hival, density, col#, spare1, spare2, avgcln from hist_head$ where obj#=:1 and intcol#=:2
END OF STMT
PARSE #2:c=0,e=568,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=3,tim=10199056084
EXEC #2:c=0,e=1024,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=3,tim=10199057412
FETCH #2:c=0,e=30,p=0,cr=2,cu=0,mis=0,r=0,dep=1,og=3,tim=10199057533
STAT #2 id=1 cnt=0 pid=0 pos=1 obj=411 op='TABLE ACCESS BY INDEX ROWID HIST_HEAD$ (cr=2 pr=0 pw=0 time=0 us)'
STAT #2 id=2 cnt=0 pid=1 pos=1 obj=413 op='INDEX RANGE SCAN I_HH_OBJ#_INTCOL# (cr=2 pr=0 pw=0 time=0 us)'
=====================
PARSING IN CURSOR #2 len=210 dep=1 uid=0 oct=3 lid=0 tim=10199057848 hv=864012087 ad='29162590' sqlid='96g93hntrzjtr'
select /*+ rule */ bucket_cnt, row_cnt, cache_cnt, null_cnt, timestamp#, sample_size, minimum, maximum, distcnt, lowval, hival, density, col#, spare1, spare2, avgcln from hist_head$ where obj#=:1 and intcol#=:2
END OF STMT
EXEC #2:c=0,e=25,p=0,cr=0,cu=0,mis=0,r=0,dep=1,og=3,tim=10199057844
FETCH #2:c=0,e=13,p=0,cr=2,cu=0,mis=0,r=0,dep=1,og=3,tim=10199058128
EXEC #1:c=0,e=7034,p=0,cr=4,cu=0,mis=1,r=0,dep=0,og=1,tim=10199060756
FETCH #1:c=15600,e=13882,p=0,cr=0,cu=0,mis=0,r=1,dep=0,og=1,tim=10199075783
FETCH #1:c=0,e=21,p=0,cr=0,cu=0,mis=0,r=5,dep=0,og=1,tim=10199076326
STAT #1 id=1 cnt=6 pid=0 pos=1 obj=0 op='SORT ORDER BY (cr=0 pr=0 pw=0 time=0 us cost=2 size=2115 card=1)'
STAT #1 id=2 cnt=6 pid=1 pos=1 obj=0 op='COUNT (cr=0 pr=0 pw=0 time=8 us)'
STAT #1 id=3 cnt=6 pid=2 pos=1 obj=0 op='HASH JOIN (cr=0 pr=0 pw=0 time=6 us cost=1 size=2115 card=1)'
STAT #1 id=4 cnt=35 pid=3 pos=1 obj=0 op='FIXED TABLE FULL X$KSPPI (cr=0 pr=0 pw=0 time=70 us cost=0 size=81 card=1)'
STAT #1 id=5 cnt=1915 pid=3 pos=2 obj=0 op='FIXED TABLE FULL X$KSPPCV (cr=0 pr=0 pw=0 time=19 us cost=0 size=203400 card=100)'
关于alter_SID.log中的内容如下： 今天的：
注意这个文件中包含Oracle启动的参数信息：可以利用这些信息配置spfile或者pfile文件尝试用这个配置的文件启动数据库也可以的
[plain]
Thu Jun 13 22:13:43 2013
Starting ORACLE instance (normal)
LICENSE_MAX_SESSION = 0
LICENSE_SESSIONS_WARNING = 0
Picked latch-free SCN scheme 2
Using LOG_ARCHIVE_DEST_1 parameter default value as D:\app\topwqp\product\11.1.0\db_1\RDBMS
Using LOG_ARCHIVE_DEST_10 parameter default value as USE_DB_RECOVERY_FILE_DEST
Autotune of undo retention is turned on.
IMODE=BR
ILAT =18
LICENSE_MAX_USERS = 0
SYS auditing is disabled
Starting up ORACLE RDBMS Version: 11.1.0.6.0.
Using parameter settings in server-side spfile D:\APP\TOPWQP\PRODUCT\11.1.0\DB_1\DATABASE\SPFILEORCL.ORA
System parameters with non-default values:
processes = 150
memory_target = 412M
control_files = "D:\APP\TOPWQP\ORADATA\ORCL\CONTROL01.CTL"
control_files = "D:\APP\TOPWQP\ORADATA\ORCL\CONTROL02.CTL"
control_files = "D:\APP\TOPWQP\ORADATA\ORCL\CONTROL03.CTL"
db_block_size = 8192
compatible = "11.1.0.0.0"
db_recovery_file_dest = "D:\app\topwqp\flash_recovery_area"
db_recovery_file_dest_size= 2G
fast_start_mttr_target = 0
undo_tablespace = "UNDOTBS1"
remote_login_passwordfile= "EXCLUSIVE"
db_domain = ""
dispatchers = "(PROTOCOL=TCP) (SERVICE=orclXDB)"
audit_file_dest = "D:\APP\TOPWQP\ADMIN\ORCL\ADUMP"
audit_trail = "DB"
db_name = "orcl"
open_cursors = 300
diagnostic_dest = "D:\APP\TOPWQP"
Thu Jun 13 22:13:46 2013
PMON started with pid=2, OS id=1888
Thu Jun 13 22:13:46 2013
VKTM started with pid=3, OS id=4296 at elevated priority
Thu Jun 13 22:13:46 2013
DIAG started with pid=4, OS id=6804
VKTM running at (20)ms precision
Thu Jun 13 22:13:46 2013
DBRM started with pid=5, OS id=7360
Thu Jun 13 22:13:46 2013
PSP0 started with pid=6, OS id=648
Thu Jun 13 22:13:46 2013
DSKM started with pid=7, OS id=7460
Thu Jun 13 22:13:46 2013
DIA0 started with pid=8, OS id=1592
Thu Jun 13 22:13:46 2013
MMAN started with pid=7, OS id=4512
Thu Jun 13 22:13:46 2013
DBW0 started with pid=9, OS id=6920
Thu Jun 13 22:13:46 2013
LGWR started with pid=10, OS id=3712
Thu Jun 13 22:13:46 2013
CKPT started with pid=11, OS id=6512
Thu Jun 13 22:13:46 2013
SMON started with pid=12, OS id=7992
Thu Jun 13 22:13:46 2013
RECO started with pid=13, OS id=7056
Thu Jun 13 22:13:46 2013
MMON started with pid=14, OS id=7844
starting up 1 dispatcher(s) for network address '(ADDRESS=(PARTIAL=YES)(PROTOCOL=TCP))'...
Thu Jun 13 22:13:46 2013
MMNL started with pid=15, OS id=6284
starting up 1 shared server(s) ...
ORACLE_BASE from environment = D:\app\topwqp
Thu Jun 13 22:13:46 2013
alter database mount exclusive
Setting recovery target incarnation to 2
Successful mount of redo thread 1, with mount id 1345846942
Database mounted in Exclusive Mode
Lost write protection disabled
Completed: alter database mount exclusive
alter database open
Beginning crash recovery of 1 threads
parallel recovery started with 3 processes
Started redo scan
Thu Jun 13 22:13:56 2013
Completed redo scan
4095 redo blocks read, 510 data blocks need recovery
Started redo application at
Thread 1: logseq 434, block 67636
Recovery of Online Redo Log: Thread 1 Group 2 Seq 434 Reading mem 0
Mem# 0: D:\APP\TOPWQP\ORADATA\ORCL\REDO02.LOG
Completed redo application
Completed crash recovery at
Thread 1: logseq 434, block 71731, scn 5101264
510 data blocks read, 510 data blocks written, 4095 redo blocks read
Thu Jun 13 22:14:00 2013
Thread 1 advanced to log sequence 435
Thread 1 opened at log sequence 435
Current log# 3 seq# 435 mem# 0: D:\APP\TOPWQP\ORADATA\ORCL\REDO03.LOG
Successful open of redo thread 1
MTTR advisory is disabled because FAST_START_MTTR_TARGET is not set
Thu Jun 13 22:14:01 2013
SMON: enabling cache recovery
Successfully onlined Undo Tablespace 2.
Verifying file header compatibility for 11g tablespace encryption..
Verifying 11g file header compatibility for tablespace encryption completed
SMON: enabling tx recovery
Database Characterset is ZHS16GBK
Opening with internal Resource Manager plan
Starting background process FBDA
Starting background process SMCO
Thu Jun 13 22:14:06 2013
FBDA started with pid=22, OS id=4524
Thu Jun 13 22:14:06 2013
SMCO started with pid=23, OS id=6344
Thu Jun 13 22:14:07 2013
replication_dependency_tracking turned off (no async multimaster replication found)
Starting background process QMNC
Thu Jun 13 22:14:09 2013
QMNC started with pid=25, OS id=7168
Thu Jun 13 22:14:20 2013
db_recovery_file_dest_size of 2048 MB is 0.00% used. This is a
user-specified limit on the amount of space that will be used by this
database for recovery-related files, and does not reflect the amount of
space available in the underlying filesystem or ASM diskgroup.
Thu Jun 13 22:14:30 2013
Completed: alter database open
Thu Jun 13 22:18:50 2013
Starting background process CJQ0
Thu Jun 13 22:18:50 2013
CJQ0 started with pid=28, OS id=5912
Setting Resource Manager plan SCHEDULER[0x2C0C]:DEFAULT_MAINTENANCE_PLAN via scheduler window
Setting Resource Manager plan DEFAULT_MAINTENANCE_PLAN via parameter
Thu Jun 13 22:19:07 2013
Thu Jun 13 22:19:07 2013
Logminer Bld: Lockdown Complete. DB_TXN_SCN is UnwindToSCN (LockdownSCN) is 5102149
Thu Jun 13 22:19:11 2013
Begin automatic SQL Tuning Advisor run for special tuning task "SYS_AUTO_SQL_TUNING_TASK"
Thu Jun 13 22:20:29 2013
End automatic SQL Tuning Advisor run for special tuning task "SYS_AUTO_SQL_TUNING_TASK"
oracle的启动参数信息如下：
System parameters with non-default values:
processes = 150
memory_target = 412M
control_files = "D:\APP\TOPWQP\ORADATA\ORCL\CONTROL01.CTL"
control_files = "D:\APP\TOPWQP\ORADATA\ORCL\CONTROL02.CTL"
control_files = "D:\APP\TOPWQP\ORADATA\ORCL\CONTROL03.CTL"
db_block_size = 8192
compatible = "11.1.0.0.0"
db_recovery_file_dest = "D:\app\topwqp\flash_recovery_area"
db_recovery_file_dest_size= 2G
fast_start_mttr_target = 0
undo_tablespace = "UNDOTBS1"
remote_login_passwordfile= "EXCLUSIVE"
db_domain = ""
dispatchers = "(PROTOCOL=TCP) (SERVICE=orclXDB)"
audit_file_dest = "D:\APP\TOPWQP\ADMIN\ORCL\ADUMP"
audit_trail = "DB"
db_name = "orcl"
open_cursors = 300
diagnostic_dest = "D:\APP\TOPWQP"
这些信息可以用于pfile或者spfile内容。
