SSM（Spring+SpringMVC+Mybatis）框架整合，
1、数据准备
![]()
SET FOREIGN_KEY_CHECKS=0
;
-- ----------------------------
-- Table structure
for `admin`
-- ----------------------------
DROP TABLE IF EXISTS `admin`;
CREATE TABLE `admin` (
`a_id` int(11
) NOT NULL AUTO_INCREMENT,
`a_name` varchar(20
) NOT NULL,
`a_pwd` varchar(20
) NOT NULL,
PRIMARY KEY (`a_id`)
) ENGINE=InnoDB DEFAULT CHARSET=
utf8;
-- ----------------------------
--
Records of admin
-- ----------------------------
-- ----------------------------
-- Table structure
for `book`
-- ----------------------------
DROP TABLE IF EXISTS `book`;
CREATE TABLE `book` (
`b_id` int(11
) NOT NULL AUTO_INCREMENT,
`b_ISBN` varchar(20
) NOT NULL,
`b_name` varchar(40
) NOT NULL,
`b_author` varchar(20
) NOT NULL,
`b_cid` int(11
) NOT NULL,
`b_cover` varchar(50
) NOT NULL,
`b_publish_time` date NOT NULL,
`b_remark` varchar(255
) NOT NULL,
`b_num` int(11
) NOT NULL,
PRIMARY KEY (`b_id`),
KEY `b_cid` (`b_cid`),
CONSTRAINT `book_ibfk_1` FOREIGN KEY (`b_cid`) REFERENCES `category` (`c_id`)
) ENGINE=InnoDB DEFAULT CHARSET=
utf8;
-- ----------------------------
--
Records of book
-- ----------------------------
-- ----------------------------
-- Table structure
for `category`
-- ----------------------------
DROP TABLE IF EXISTS `category`;
CREATE TABLE `category` (
`c_id` int(11
) NOT NULL AUTO_INCREMENT,
`c_name` varchar(20
) NOT NULL,
PRIMARY KEY (`c_id`)
) ENGINE=InnoDB DEFAULT CHARSET=
utf8;
-- ----------------------------
--
Records of category
-- ----------------------------
-- ----------------------------
-- Table structure
for `log`
-- ----------------------------
DROP TABLE IF EXISTS `log`;
CREATE TABLE `log` (
`l_id` int(11
) NOT NULL AUTO_INCREMENT,
`l_uid` int(11
) NOT NULL,
`l_bid` int(11
) NOT NULL,
`l_begintime` date NOT NULL,
`l_endtime` date NOT NULL,
PRIMARY KEY (`l_id`),
KEY `l_uid` (`l_uid`),
KEY `l_bid` (`l_bid`),
CONSTRAINT `log_ibfk_1` FOREIGN KEY (`l_uid`) REFERENCES `user` (`u_id`),
CONSTRAINT `log_ibfk_2` FOREIGN KEY (`l_bid`) REFERENCES `book` (`b_id`)
) ENGINE=InnoDB DEFAULT CHARSET=
utf8;
-- ----------------------------
--
Records of log
-- ----------------------------
-- ----------------------------
-- Table structure
for `user`
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
`u_id` int(11
) NOT NULL AUTO_INCREMENT,
`u_name` varchar(20
) NOT NULL,
`u_pwd` varchar(20
) NOT NULL,
PRIMARY KEY (`u_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=
utf8;
-- ----------------------------
--
Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', '鲁班', '1234567890'
);
INSERT INTO `user` VALUES ('2', '杜甫', '123456');
View Code

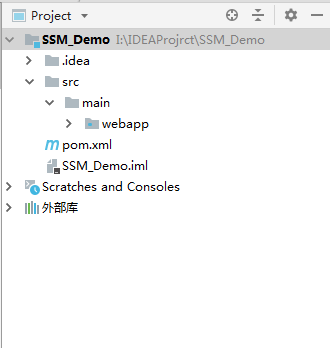

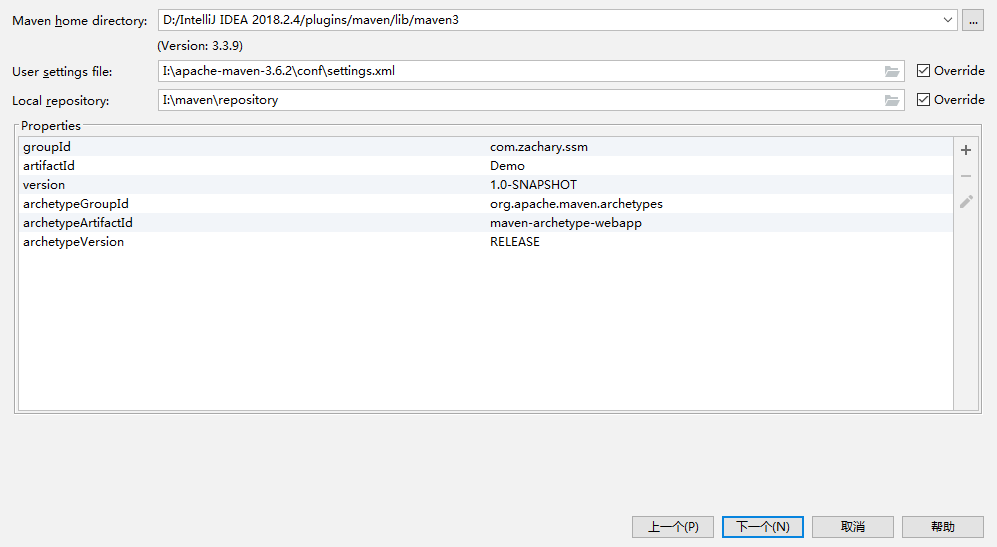

2、新建项目

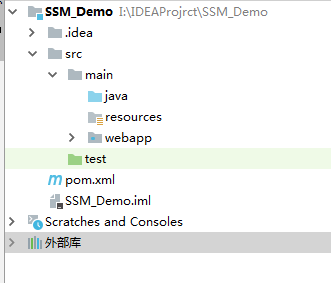

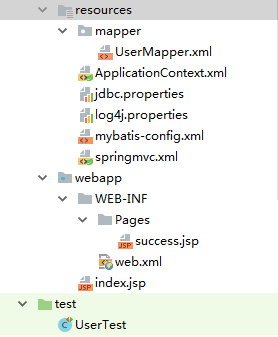

3、完善项目结构
4、导入所需jar包
![]()
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
</properties>
<dependencies>
<!--Spring -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>4.3.13.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>4.3.13.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>4.3.13.RELEASE</version>
</dependency>
<!--Mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.4.5</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.1</version>
</dependency>
<!--junit -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
<!--log4j -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<!--mysql连接驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.43</version>
</dependency>
<!--c3p0连接池-->
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.1.2</version>
</dependency>
<!--jsp-->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jsp-api</artifactId>
<version>2.0</version>
</dependency>
<!--jstl-->
<dependency>
<groupId>javax.servlet.jsp.jstl</groupId>
<artifactId>jstl-api</artifactId>
<version>1.2</version>
</dependency>
<!--servlet-->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>3.0</version>
</dependency>
<!--lombok-->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.16.18</version>
</dependency>
</dependencies>
View Code
5、编写实体类
User：
![]()
package com.ssm.pojo;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class User
implements Serializable {
private Integer id;
private String name;
private String pwd;
}
View Code
6、编写dao层
UserDao：
![]()
package com.ssm.dao;
import com.ssm.pojo.User;
import org.springframework.stereotype.Repository;
import java.util.List;
@Repository("userDao"
)
public interface UserDao {
void addUser(User user);
void deleteUser(Integer id);
void updateInfo(User user);
List<User>
queryAll();
User queryById(Integer id);
}
View Code
7、根据dao层编写xml映射配置文件
UserMapper.xml：
![]()
<?xml version="1.0" encoding="UTF-8" ?>
<!
DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ssm.dao.UserDao">
<resultMap id="userMapper" type="User">
<id property="id" column="u_id"/>
<result property="name" column="u_name"/>
<result property="pwd" column="u_pwd"/>
</resultMap>
<insert id="addUser" parameterType="User">
insert into user(u_name,u_pwd) values (#{name},#{pwd})
</insert>
<select id="queryAll" resultMap="userMapper">
select u_id,u_name,u_pwd from user
</select>
<select id="queryById" resultMap="userMapper" parameterType="int">
select * from user where u_id =
#{id}
</select>
<update id="updateInfo" parameterType="User">
update user set u_name = #{name},u_pwd = #{pwd} where u_id =
#{id}
</update>
<delete id="deleteAdmin" parameterType="int">
delete from user where u_id =
#{id}
</delete>
</mapper>
View Code
8、编写Mybatis主配置文件（mybatis-config.xml）
![]()
<?xml version="1.0" encoding="UTF-8" ?>
<!
DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<typeAliases>
<
package name="com.ssm.pojo"/>
</typeAliases>
<mappers>
<mapper resource="mapper/UserMapper.xml"/>
</mappers>
</configuration>
View Code
9、编写Spring全局配置文件（ApplicationContext.xml）
![]()
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<!--开启组件注解扫描-->
<context:component-scan base-
package="com.ssm">
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!--引入数据库配置文件-->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!--配置c3p0数据源-->
<bean id="dataSource"
class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</bean>
<!--配置SqlSessionFactory-->
<bean id="sqlSessionFactoryBean"
class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
<!--开启动态扫描dao层接口-->
<bean id="mapperScannerConfigurer"
class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.ssm.dao"/>
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactoryBean"/>
</bean>
<!--事务-->
<bean id="dataSourceTransactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
</beans>
View Code
10、编写service层
IUserService：
![]()
package com.ssm.service;
import com.ssm.pojo.User;
import java.util.List;
public interface IUserService {
void addUser(User user);
void deleteUser(Integer id);
void updateInfo(User user);
List<User>
queryAll();
User queryById(Integer id);
}
View Code
UserService：
![]()
package com.ssm.service.impl;
import com.ssm.dao.UserDao;
import com.ssm.pojo.User;
import com.ssm.service.IUserService;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.List;
@Service("userService"
)
public class UserService
implements IUserService {
@Resource
private UserDao userDao;
@Override
public void addUser(User user) {
userDao.addUser(user);
}
@Override
public void deleteUser(Integer id) {
userDao.deleteUser(id);
}
@Override
public void updateInfo(User user) {
userDao.updateInfo(user);
}
@Override
public List<User>
queryAll() {
return userDao.queryAll();
}
@Override
public User queryById(Integer id) {
return userDao.queryById(id);
}
}
View Code
11、spring整合Mybatis完成（测试）
![]()
import com.ssm.pojo.User;
import com.ssm.service.IUserService;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import javax.annotation.Resource;
import java.util.List;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:ApplicationContext.xml"
)
public class UserTest {
@Resource
IUserService userService;
@Test
public void getAll() {
List<User> users =
userService.queryAll();
for (User user : users) {
System.out.println(user);
}
}
}
View Code
12、编写web.xml
![]()
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<display-name>Archetype Created Web Application</display-name>
<!--配置DispatcherServlet前端控制器-->
<servlet>
<servlet-name>dispatcherServlet</servlet-name>
<servlet-
class>org.springframework.web.servlet.DispatcherServlet</servlet-
class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:ApplicationContext.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>dispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!--乱码过滤器-->
<filter>
<filter-name>characterEncodingFilter</filter-name>
<filter-
class>org.springframework.web.filter.CharacterEncodingFilter</filter-
class>
</filter>
<filter-mapping>
<filter-name>characterEncodingFilter</filter-name>
<url-pattern>
/*</url-pattern>
</filter-mapping>
</web-app>
View Code
13、编写springmvc配置文件（springmvc.xml）
![]()
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http:
//www.springframework.org/schema/beans/spring-beans.xsd
http:
//www.springframework.org/schema/context
http:
//www.springframework.org/schema/context/spring-context.xsd
http:
//www.springframework.org/schema/mvc
https:
//www.springframework.org/schema/mvc/spring-mvc.xsd">
<!--资源过滤器-->
<mvc:
default-servlet-handler/>
<!--注解驱动-->
<mvc:annotation-driven/>
<!--注解扫描-->
<context:component-scan base-
package="com.ssm.controller"/>
<!--视图解析器-->
<bean id="internalResourceViewResolver"
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/Pages/"/>
<property name="suffix" value=".jsp"/>
</bean>
</beans>
View Code
14、spring整合springmvc（ApplicationContext.xml引入springmvc.xml）
![]()
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<!--引入springmvc配置文件-->
<
import resource="springmvc.xml"/>
<!--开启组件注解扫描-->
<context:component-scan base-
package="com.ssm">
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!--引入数据库配置文件-->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!--配置c3p0数据源-->
<bean id="dataSource"
class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</bean>
<!--配置SqlSessionFactory-->
<bean id="sqlSessionFactoryBean"
class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
<!--开启动态扫描dao层接口-->
<bean id="mapperScannerConfigurer"
class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.ssm.dao"/>
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactoryBean"/>
</bean>
<!--事务-->
<bean id="dataSourceTransactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
</beans>
View Code
15、编写controller层
UserController：
![]()
package com.ssm.controller;
import com.ssm.pojo.User;
import com.ssm.service.IUserService;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import javax.annotation.Resource;
@RequestMapping("/user"
)
@Controller
public class UserController {
@Resource
IUserService userService;
@RequestMapping("getUserInfo"
)
public String test(Model model) {
User user = userService.queryById(1
);
model.addAttribute("user"
, user);
return "success"
;
}
}
View Code
16、创建必要的测试页面
index.jsp：
![]()
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<a href="/user/getUserInfo">点我测试!</a>
</body>
</html>
View Code
success.jsp：
![]()
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<html>
<head>
<title>Title</title>
</head>
<body>
Name:${user.name}
PassWord:${user.pwd}
</body>
</html>
View Code

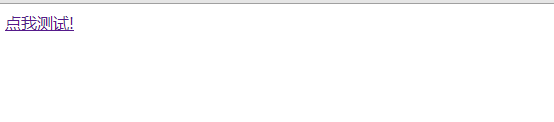

17、整合完成，测试喽！
18、晒上项目结构图
19、其他配置文件
数据库配置文件：
![]()
jdbc.driver=
com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql:
//localhost:3306/booksys?useUnicode=true&characterEncoding=utf8
#用户名
jdbc.username=
root
#密码
jdbc.password=123456
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=
false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2
View Code
log4j日志配置文档：
![]()
log4j.rootLogger=
debug,stdout, R
log4j.appender.stdout=
org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=
org.apache.log4j.PatternLayout
# Pattern to output the caller's file name and line number.
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] (%F:%L) - %m%
n
log4j.appender.R=
org.apache.log4j.RollingFileAppender
log4j.appender.R.File=
example.log
log4j.appender.R.MaxFileSize=
100KB
# Keep one backup file
log4j.appender.R.MaxBackupIndex=5
log4j.appender.R.layout=
org.apache.log4j.PatternLayout
log4j.appender.R.layout.ConversionPattern=%p %t %c - %m%n
View Code
http://www.htsjk.com/Mysql/40284.html
www.htsjk.Com
true
http://www.htsjk.com/Mysql/40284.html
NewsArticle
SSM（Spring+SpringMVC+Mybatis）框架整合， 1、数据准备 SET FOREIGN_KEY_CHECKS=0 ; -- ------------------------------ Table structure for `admin` -- ---------------------------- DROP TABLE IF EXISTS `admin`;CREATE TABLE `admin` ( `...
本站文章为和通数据库网友分享或者投稿，欢迎任何形式的转载，但请务必注明出处.
同时文章内容如有侵犯了您的权益，请联系QQ：970679559，我们会在尽快处理。
