MySQL8 clone plugin，

MySQL8 clone plugin，

  安装MySQl8.0.17

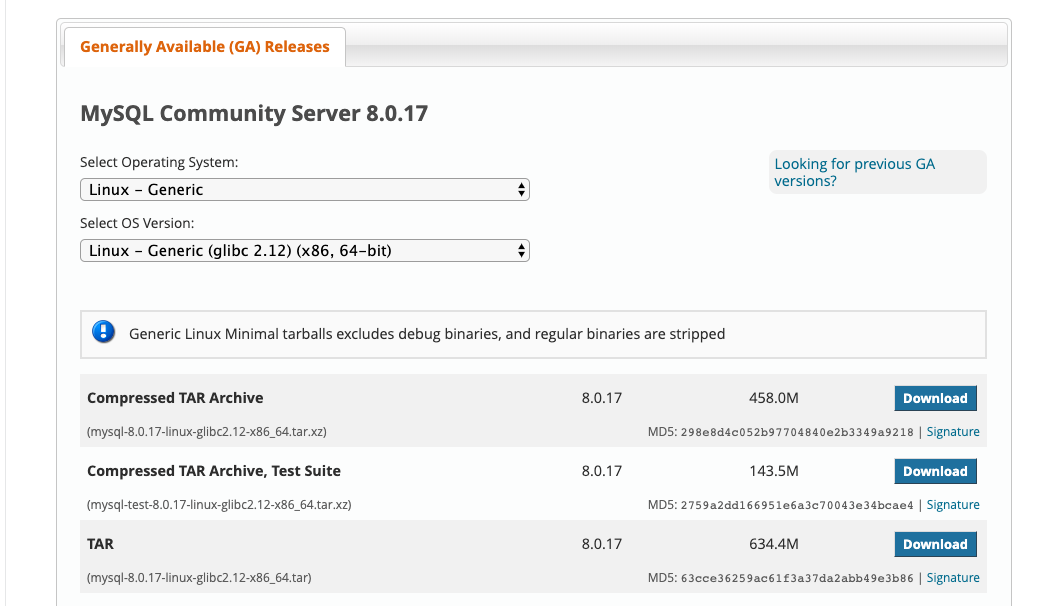

• 下载

MySQL8.0.17 二进制版本

https://dev.mysql.com/downloads/mysql/



解压，修改权限

1 tar xf mysql-8.0.17-linux-glibc2.12-x86_64.tar -C /usr/local/ 2 3 ln -sv mysql-8.0.17-linux-glibc2.12-x86_64 mysql8 4 5 chown -R mysql:mysql mysql8/* View Code

• 配置文件

[client] port = 5432 socket = /data/mysql8017/tmp/mysql.sock [mysql] no-auto-rehash default-character-set = utf8mb4 prompt=mysql(\\U[\\d])> [mysqld] ###############basic setting################# #skip-grant-tables sql_mode = 'TRADITIONAL' #ngram_token_size = 1 basedir = /usr/local/mysql8 datadir = /data/mysql8017/var port = 5432 mysqlx_port = 54321 admin_port = 54322 server_id = 158 socket = /data/mysql8017/tmp/mysql.sock mysqlx_socket = /data/mysql8017/tmp/mysqlx.sock pid-file = /data/mysql8017/var/mysql.pid tmpdir = /data/mysql8017/tmp default_authentication_plugin =mysql_native_password explicit_defaults_for_timestamp = 1 auto_increment_increment = 1 auto_increment_offset = 1 #lower_case_table_names = 1 secure-file-priv = '/data/mysql8017/tmp' default-time-zone = system character-set-server = utf8mb4 collation_server = utf8mb4_general_ci #default_collation_for_utf8mb4 = utf8mb4_general_ci interactive_timeout = 1800 wait_timeout = 1800 max_connections = 2000 max_allowed_packet = 64M #####skip #skip-name-resolve #skip-grant-tables #skip-external-locking #skip-networking skip-slave-start thread_cache_size = 768 ####log settings############### expire_logs_days = 7 log-bin = mysql-bin log-bin-index = mysql-bin.index relay-log = relay-log relay_log_index = relay-log.index #log-warnings = 1 log_error_verbosity = 3 log-error = /data/mysql8017/log/mysql.err slow_query_log = 1 long-query-time = 1 log_queries_not_using_indexes = 1 log_throttle_queries_not_using_indexes = 10 log_slow_admin_statements = 1 log_slow_slave_statements = 1 #min_examined_row_limit = 100 slow_query_log_file = /data/mysql8017/log/slow.log general_log = 0 general_log_file = /data/mysql8017/log/mysql.log max_binlog_size = 1G max_relay_log_size = 1G #####InnoDB setting########### default_storage_engine = innodb innodb_buffer_pool_size = 4G innodb_data_home_dir = /data/mysql8017/var innodb_data_file_path = ibdata1:1G:autoextend innodb_temp_data_file_path = ibtmp1:12M:autoextend:max:10G innodb_lru_scan_depth = 2000 innodb_file_per_table = 1 innodb_write_io_threads = 8 innodb_read_io_threads = 8 innodb_purge_threads = 8 innodb_thread_concurrency = 0 innodb_flush_log_at_trx_commit = 0 innodb_log_buffer_size = 32M innodb_log_file_size = 2G innodb_log_files_in_group = 3 innodb_log_group_home_dir = /data/mysql8017/var innodb_flush_neighbors = 1 innodb_print_all_deadlocks = 1 innodb_strict_mode = 1 innodb_sort_buffer_size = 67108864 innodb_undo_tablespaces = 3 innodb_max_dirty_pages_pct = 75 innodb_flush_method = O_DIRECT innodb_lock_wait_timeout = 5 innodb_open_files = 65535 innodb_use_native_aio = on innodb_buffer_pool_dump_pct = 40 innodb_page_cleaners = 4 innodb_undo_log_truncate = 1 innodb_purge_rseg_truncate_frequency = 128 binlog_gtid_simple_recovery = 1 innodb_io_capacity = 2000 innodb_io_capacity_max = 3000 log_timestamps = system ###replication settings########### master_info_repository = table relay_log_info_repository = table binlog_format = row sync_binlog = 0 transaction_isolation = READ-COMMITTED log_slave_updates = on relay_log_recovery = 1 #for gtid gtid_mode = on enforce_gtid_consistency = on binlog_gtid_simple_recovery = 1 #####MyISAM setting########## key_buffer_size = 128M read_buffer_size = 8M read_rnd_buffer_size = 8M join_buffer_size = 8M bulk_insert_buffer_size = 64M sort_buffer_size = 8M myisam_sort_buffer_size = 1G myisam_max_sort_file_size = 10G myisam_repair_threads = 1 table_open_cache = 4096 [mysqldump] quick max_allowed_packet = 64M [myisamchk] key_buffer_size = 64M sort_buffer_size = 16M read_buffer_size = 64M write_buffer_size = 64M [mysqlhotcopy] interactive-timeout View Code



初始化

cd /usr/local/mysql8 ./bin/mysqld --defaults-file=/data/mysql8017/etc/my.cnf --user=mysql --initialize View Code



启动

/usr/local/mysql8/bin/mysqld --defaults-file=/data/mysql8017/etc/my.cnf --user=mysql & View Code



安装clone plugin

•  命令行加载插件

INSTALL PLUGIN clone SONAME 'mysql_clone.so'; View Code



• 配置文件启动时加载

[mysqld] plugin-load-add=mysql_clone.so View Code



• 强制启动时，必须加载clone插件

[mysqld] plugin-load-add=mysql_clone.so clone=FORCE_PLUS_PERMANENT View Code



• 本地 clone
• clone 需要游clone_admin权限的用户才能clone，本地实验使用root

GRANT BACKUP_ADMIN ON *.* TO 'clone_user'; View Code



• 本地执行clone

clone local data directory ='clone_dir';

clone_dir MySQL 有写入权限



mysql> clone local data directory ='/data/mysql8/clone_data/mysql8017';
Query OK, 0 rows affected (5 min 13.88 sec)



• 远程 clone

set global clone_valid_donor_list='192.168.64.154:5432'

clone instance from gao@192.168.64.154:5432 identified by '213456' data directory = '/data/backup/clone/mysql8';



•  验证

mkdir -pv /data/mysql8/{etc,var,log,tmp}
mv /data/backup/clone/mysql8/* /data/mysql8/var/

/usr/local/mysql8/bin/mysqld --defaults-file=/data/mysql8/etc/my.cnf --user=mysql &



mysql> use performance_schema; Reading table information for completion of table and column names You can turn off this feature to get a quicker startup with -A show Database changed mysql> show tables like '%clone%'; +----------------------------------------+ | Tables_in_performance_schema (%clone%) | +----------------------------------------+ | clone_progress | | clone_status | +----------------------------------------+ 2 rows in set (0.01 sec) mysql> select * from clone_status ; +------+------+-----------+-------------------------+-------------------------+---------------------+----------------+----------+---------------+-----------------+-----------------+---------------+ | ID | PID | STATE | BEGIN_TIME | END_TIME | SOURCE | DESTINATION | ERROR_NO | ERROR_MESSAGE | BINLOG_FILE | BINLOG_POSITION | GTID_EXECUTED | +------+------+-----------+-------------------------+-------------------------+---------------------+----------------+----------+---------------+-----------------+-----------------+---------------+ | 1 | 0 | Completed | 2019-07-30 18:09:20.763 | 2019-07-31 11:29:31.355 | 192.168.64.154:5432 | LOCAL INSTANCE | 0 | | mybinlog.000007 | 565 | | +------+------+-----------+-------------------------+-------------------------+---------------------+----------------+----------+---------------+-----------------+-----------------+---------------+ 1 row in set (0.00 sec) mysql> select * from clone_progress ; +------+-----------+-----------+----------------------------+----------------------------+---------+------------+------------+------------+------------+---------------+ | ID | STAGE | STATE | BEGIN_TIME | END_TIME | THREADS | ESTIMATE | DATA | NETWORK | DATA_SPEED | NETWORK_SPEED | +------+-----------+-----------+----------------------------+----------------------------+---------+------------+------------+------------+------------+---------------+ | 1 | DROP DATA | Completed | 2019-07-30 18:09:20.762836 | 2019-07-30 18:09:21.038340 | 1 | 0 | 0 | 0 | 0 | 0 | | 1 | FILE COPY | Completed | 2019-07-30 18:09:21.038469 | 2019-07-30 18:09:37.925766 | 2 | 1133629497 | 1133629497 | 1133697917 | 0 | 0 | | 1 | PAGE COPY | Completed | 2019-07-30 18:09:37.925995 | 2019-07-30 18:09:38.228929 | 2 | 0 | 0 | 197 | 0 | 0 | | 1 | REDO COPY | Completed | 2019-07-30 18:09:38.229253 | 2019-07-30 18:09:38.530556 | 2 | 6144 | 6144 | 6639 | 0 | 0 | | 1 | FILE SYNC | Completed | 2019-07-30 18:09:38.530749 | 2019-07-30 18:09:54.844468 | 2 | 0 | 0 | 0 | 0 | 0 | | 1 | RESTART | Completed | 2019-07-30 18:09:54.844468 | 2019-07-31 11:29:25.573844 | 0 | 0 | 0 | 0 | 0 | 0 | | 1 | RECOVERY | Completed | 2019-07-31 11:29:25.573844 | 2019-07-31 11:29:31.355007 | 0 | 0 | 0 | 0 | 0 | 0 | +------+-----------+-----------+----------------------------+----------------------------+---------+------------+------------+------------+------------+---------------+ 7 rows in set (0.00 sec) View Code



tips:

•  配置文件中目录，字符集 和donor实例保持一致
• 用clone数据启动的实例可用donor实例的从库

 reference

https://dev.mysql.com/doc/refman/8.0/en/clone-plugin-remote.html
